Fire Rating: Non Fire Rated/20min/45min
Door Thickness: 1 3/8″ or 1 3/4″ for Non Fire Rated Doors, 1 3/4″ for Fire Rated Doors
Core Type: MDF/Mineral Core
Stile and Rail: Wood Stile and Rails
Crossband: HDF
Finish: Primer Or Catalyzed Polyurethane Finish To Meet WDMA OP-6
Machining: Factory-machined Service Available
Bevel Option: Non-bevel, 1 Side Bevel or 2 Sides Bevel, 1/8″ at 2″ as Standard
Standards: Meets or Exceeds Industry Standards of ANSI/WDMA I.S. 1A, WI Section 12, AWI Section 1300
Testing Standards: USA NFPA 252 UL 10C, UL 10B, NFPA 252, and CAN/ULC S104, Positive Pressure, Category A Doors, No Additional Edge Sealing System Required
STICKING OPTIONS
Sticking Profile Options

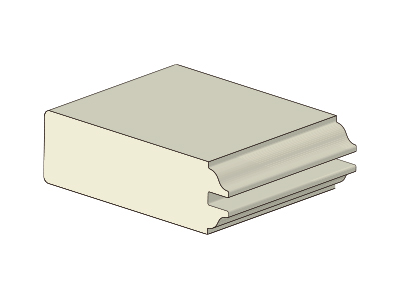

Ogee

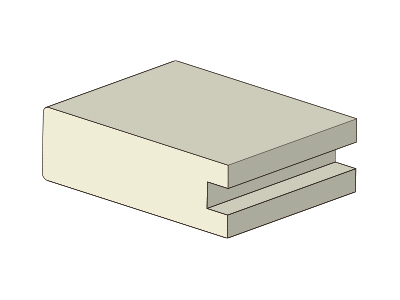

Square

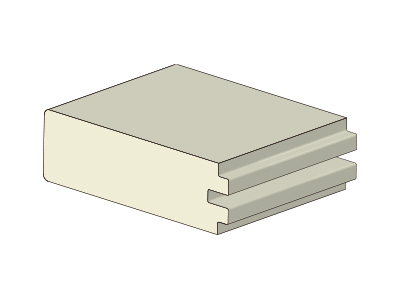

One Step

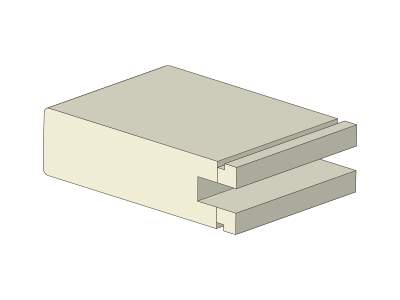

Loose Square Moulding

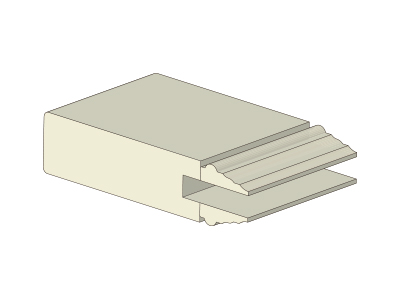

Low Profile Moulding

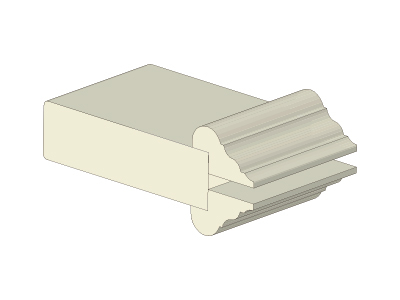

Bolection Moulding
Panel Profile Options

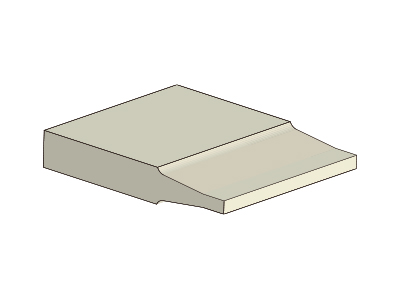

Raised “A”

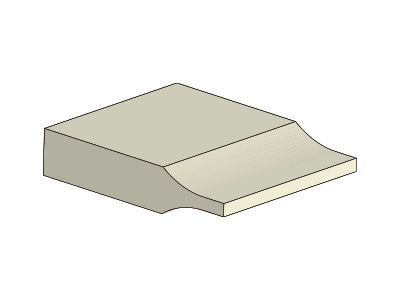

Raised “B”

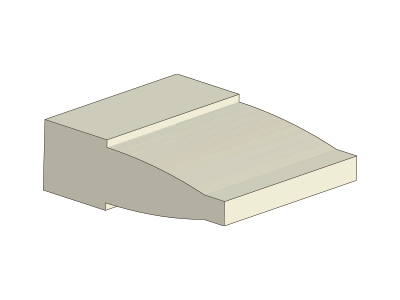

Raised “C”

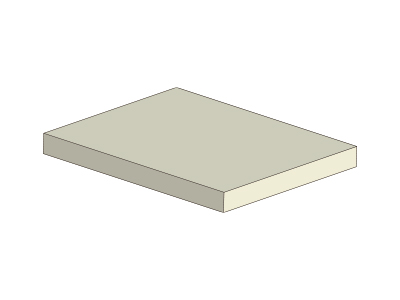

Flat
Glass Door Profile Options
Ogee

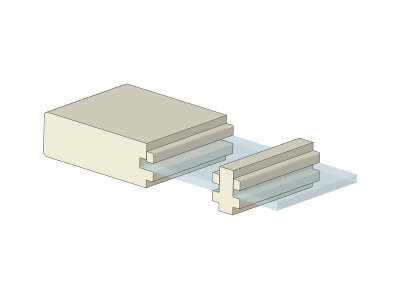

One Step

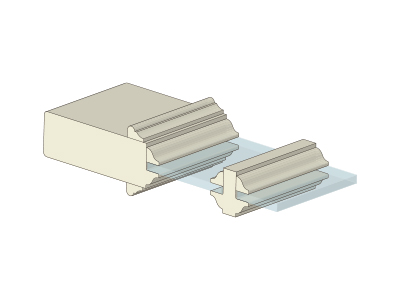

Raised Moulding

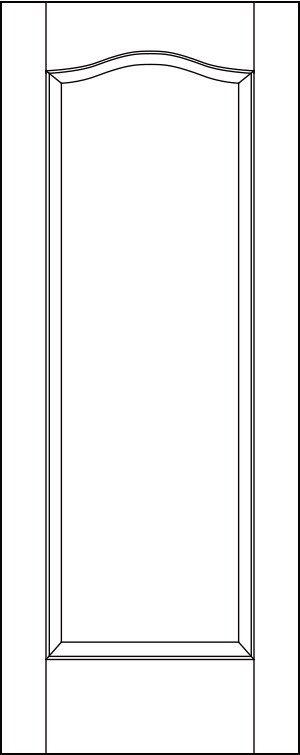

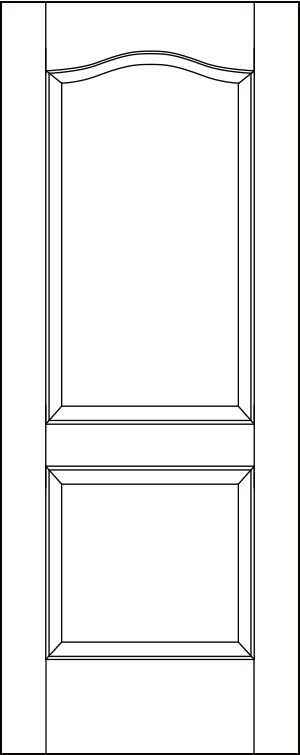

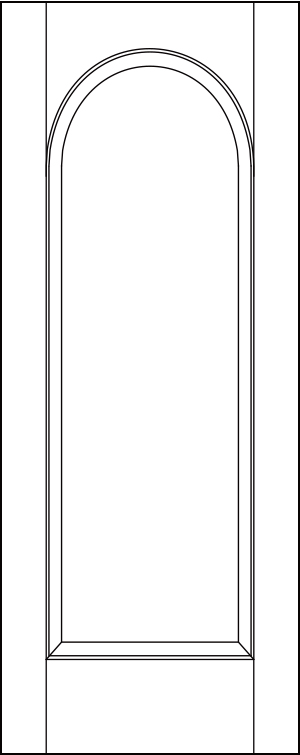

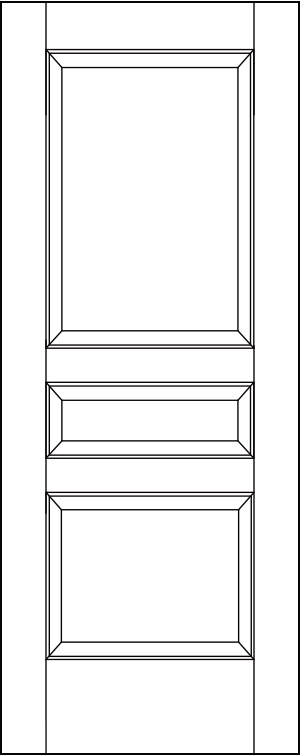

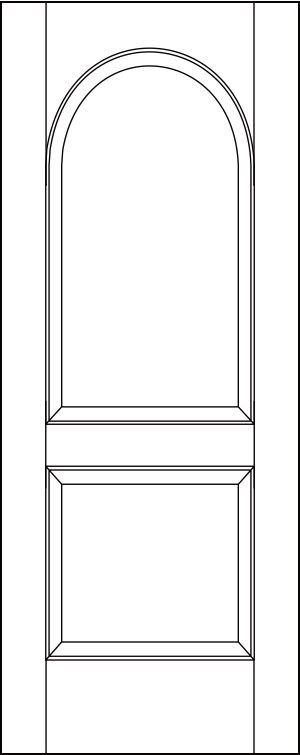

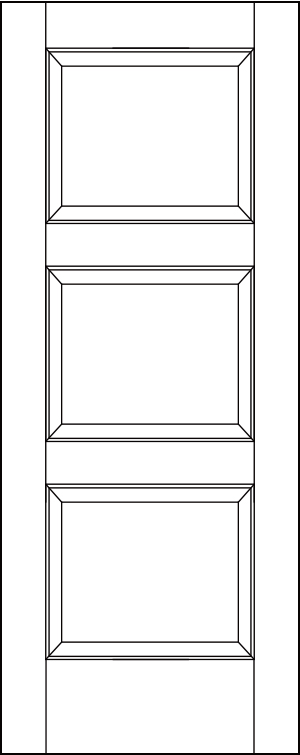

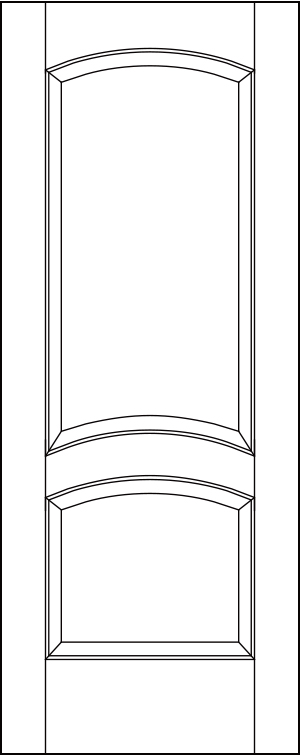

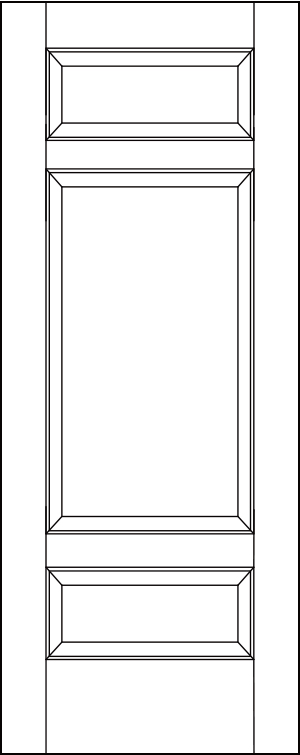

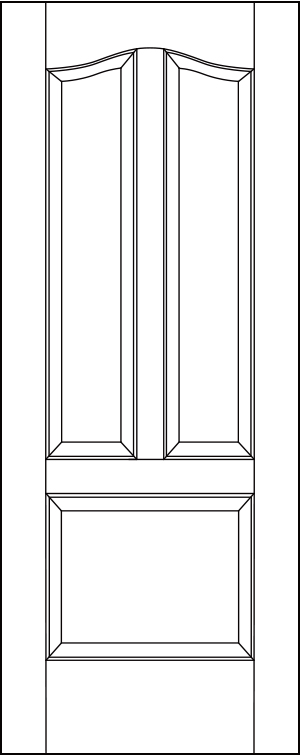

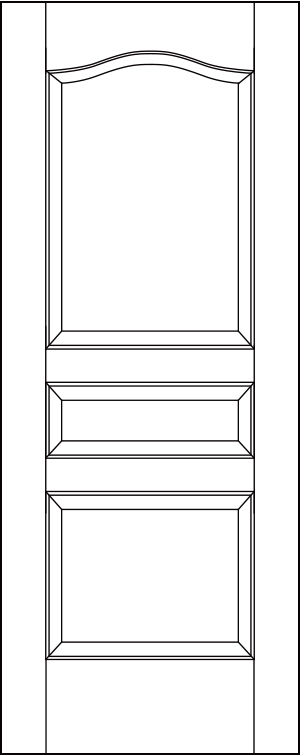

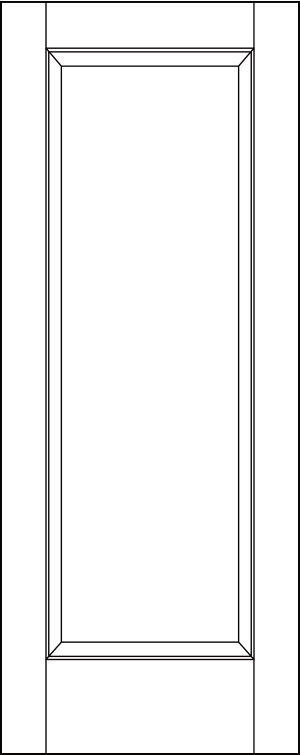

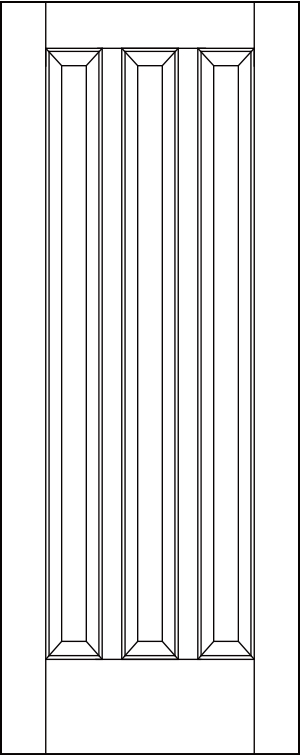

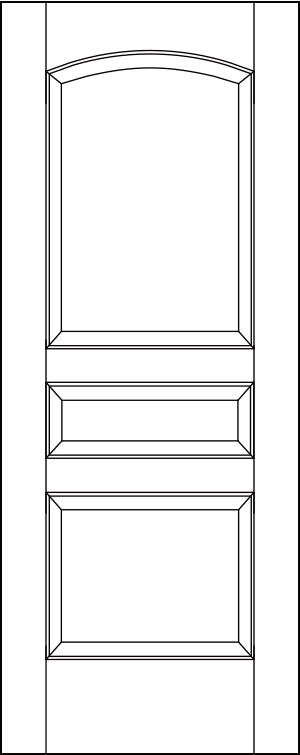

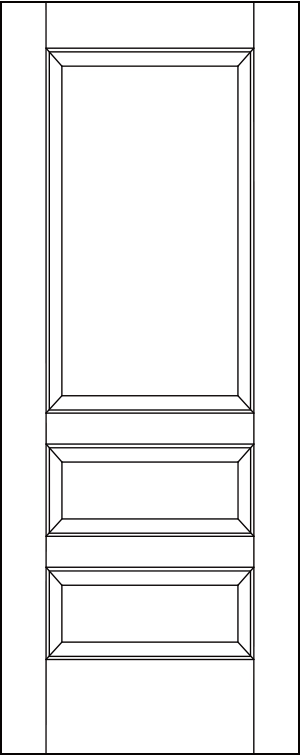

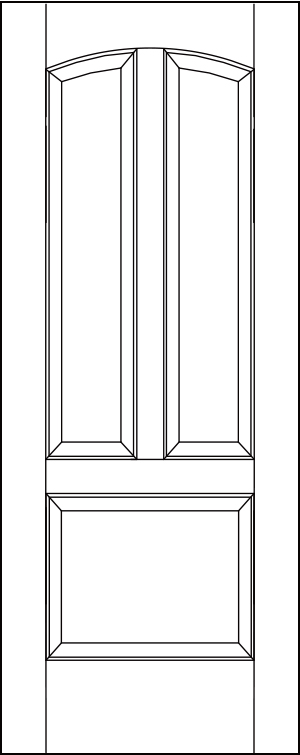

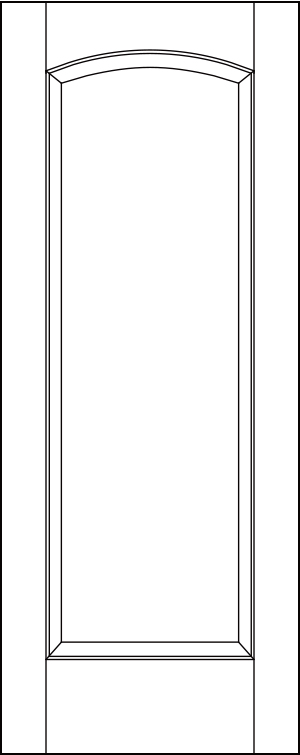

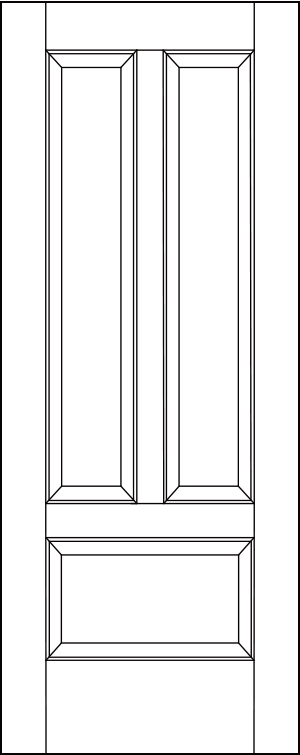

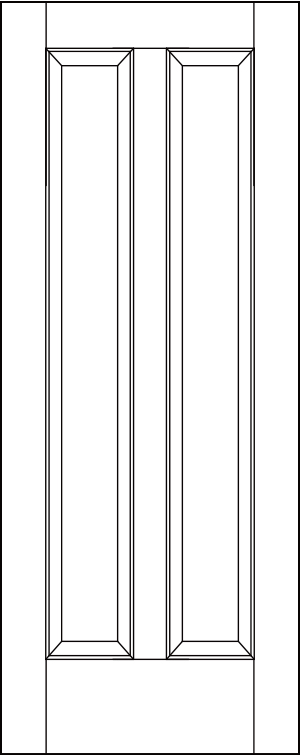

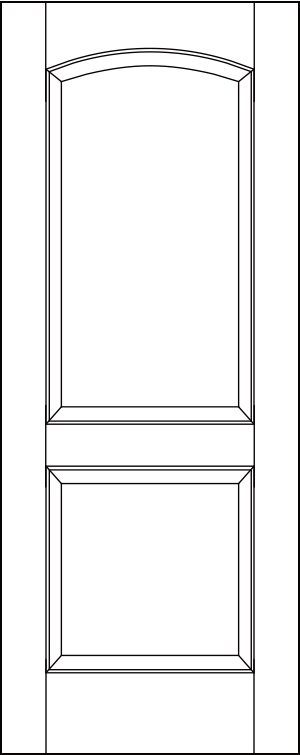

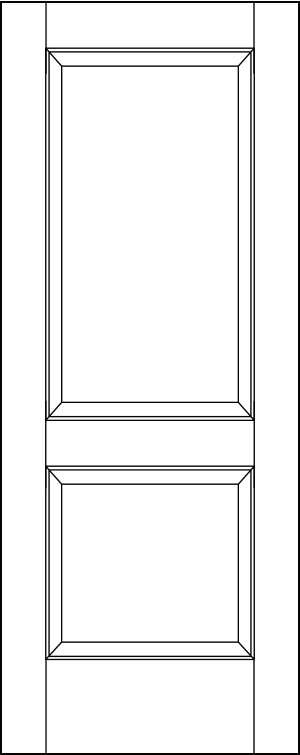

PANEL DOOR DESIGN OPTIONS
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20

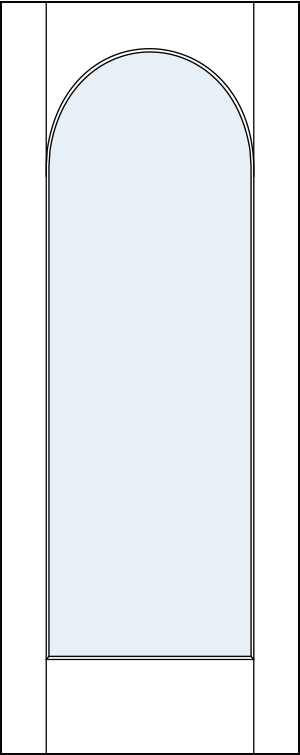

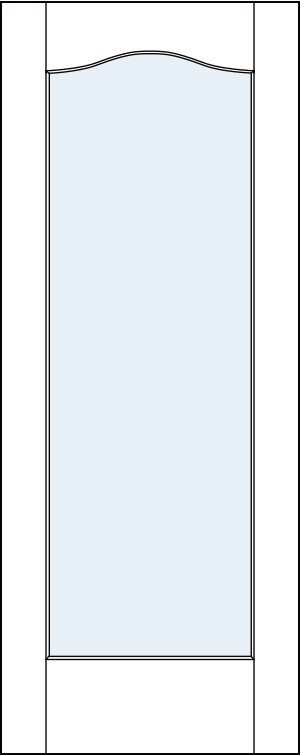

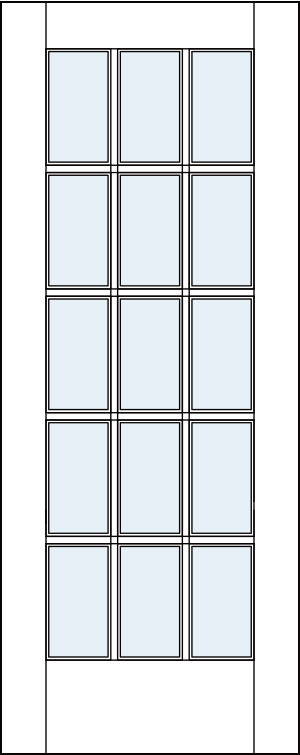

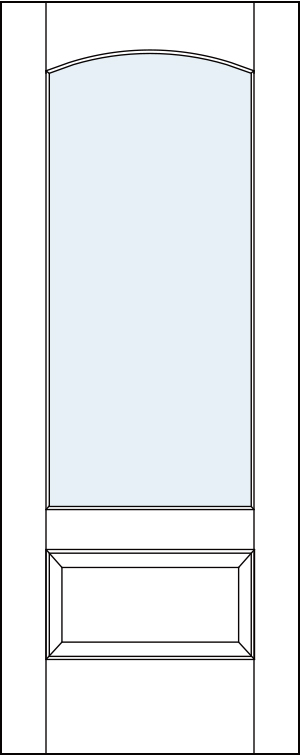

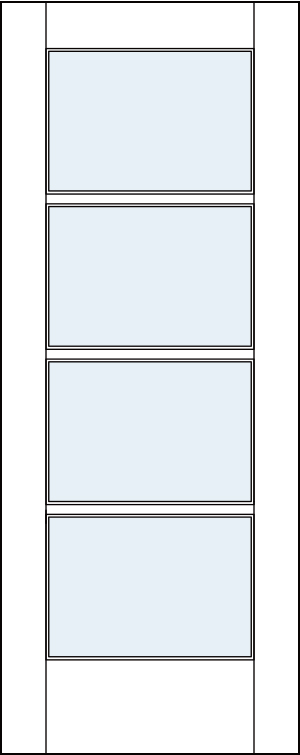

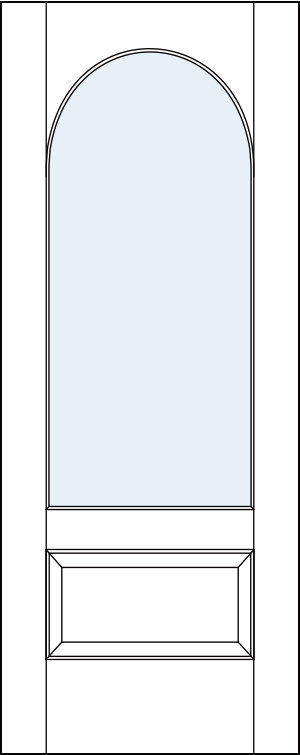

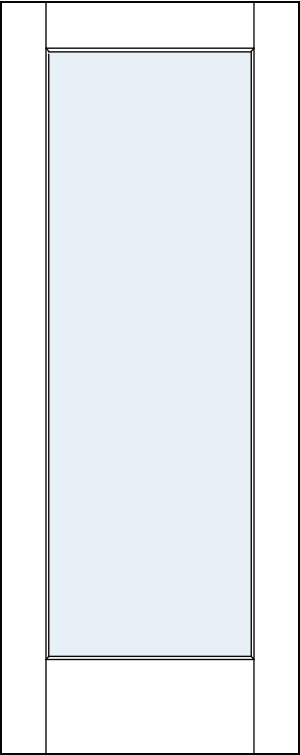

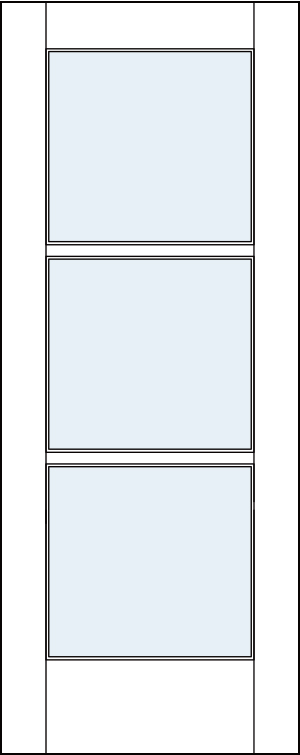

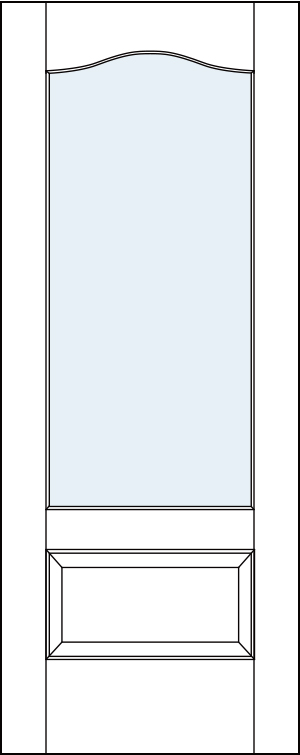

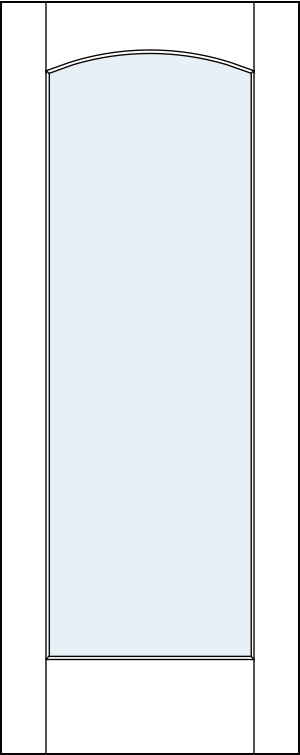

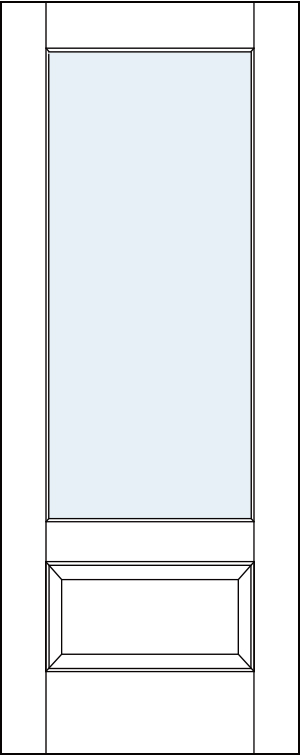

Glass Door Design Options
01
02
03
04
05
06
07
08
09
10
11

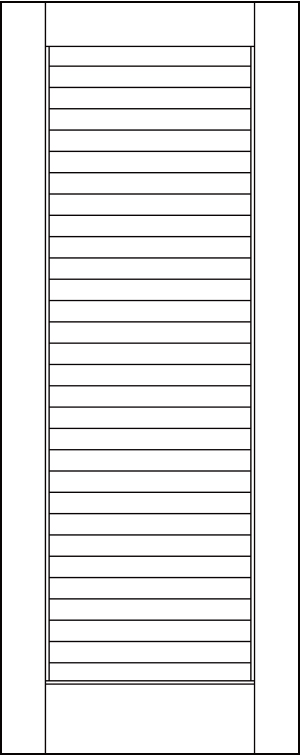

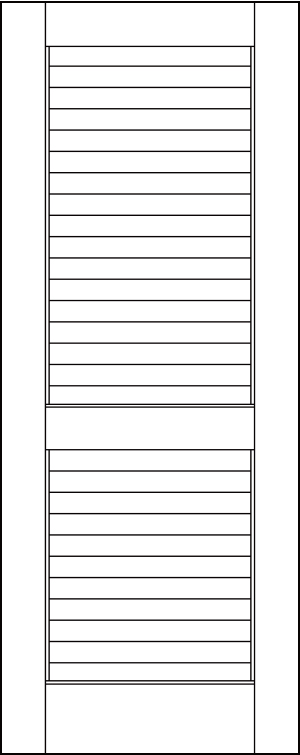

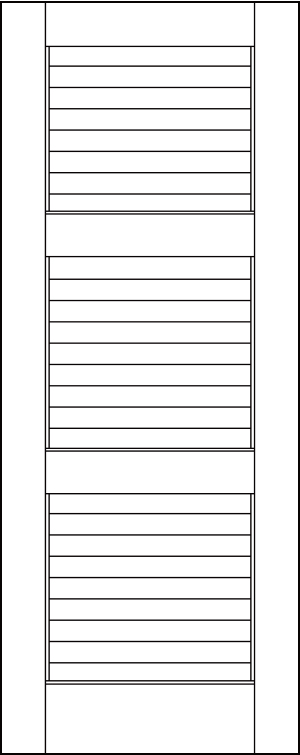

Louver Door Design Options
01
02
03
API offers customized style design options, and don’t hesitate to contact our sales representatives for more information.
