Fire Rating: Non Fire Rated/20min/45min
Door Thickness: 1 3/8″ or 1 3/4″ for Non Fire Rated Doors, 1 3/4″ for Fire Rated Doors
Core Type: Foam Core /Wood Core/ Mineral Core
Stile and Rail: Wood Stile and Rails
Crossband: HDF
Finish: Primer Or Catalyzed Polyurethane Finish To Meet WDMA OP-6
Machining: Factory-machined Service Available
Bevel Option: Non-bevel, 1 Side Bevel or 2 Sides Bevel, 1/8″ at 2″ as Standard
Standards: Meets or Exceeds Industry Standards of ANSI/WDMA I.S. 1A, WI Section 12, AWI Section 1300
Testing Standards: USA NFPA 252 UL 10C, UL 10B, NFPA 252, and CAN/ULC S104, Positive Pressure, Category A Doors, No Additional Edge Sealing System Required
STICKING OPTIONS
Fire Rated Door Sticking Options
20-Minute Fire Rated
Standard Sticking Solid Core

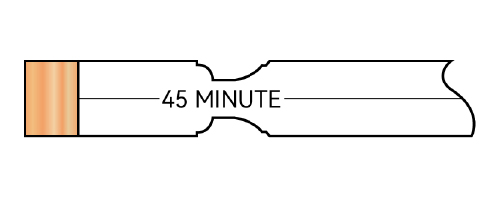

45-Minute Fire Rated
Standard Sticking Solid Core
Non Fire Rated Door Sticking Options

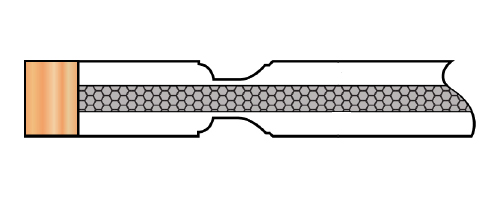

Standard Sticking Foam Core

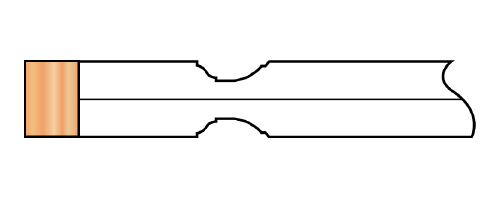

Ogee Sticking Solid Core

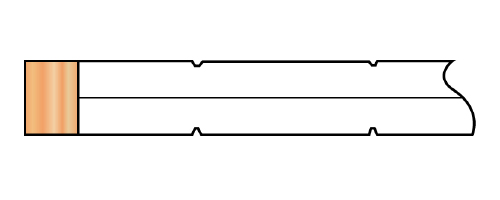

With w-Grooves

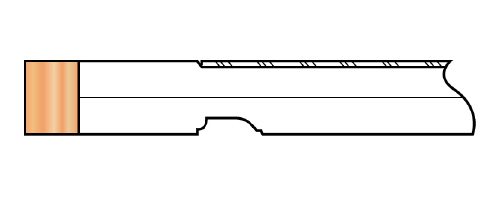

Mirror One Side

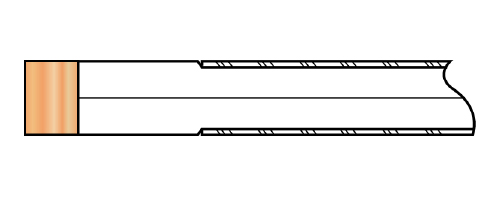

Mirror Both Sides
PROFILED DOOR DESIGN OPTIONS

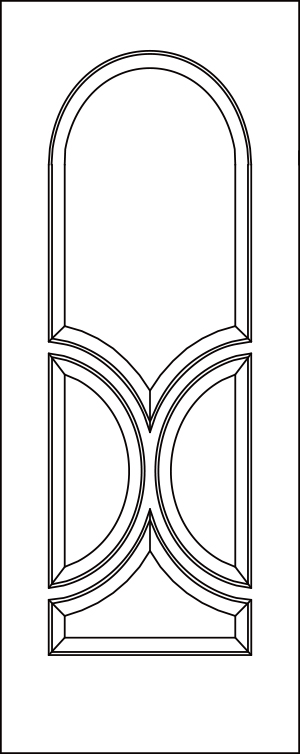

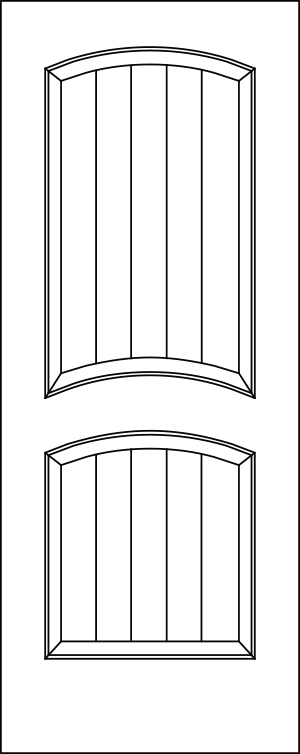

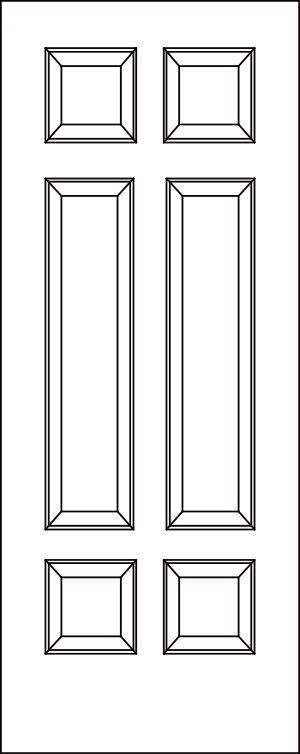

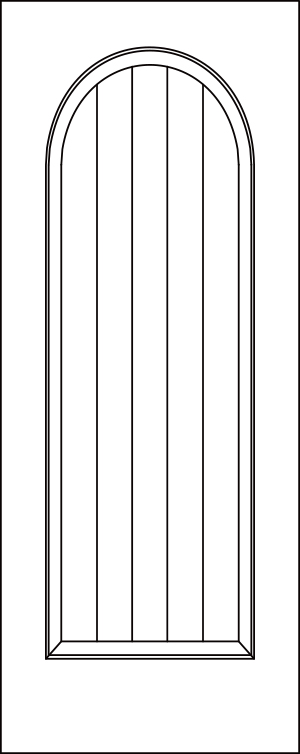

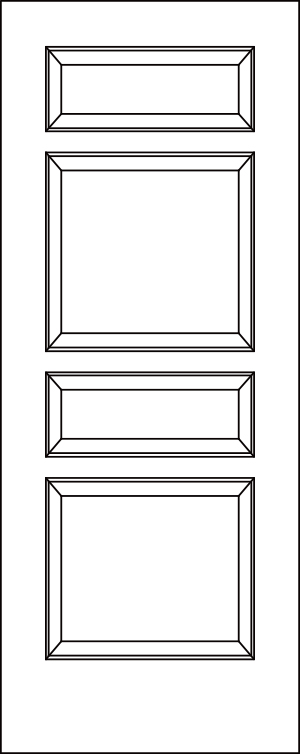

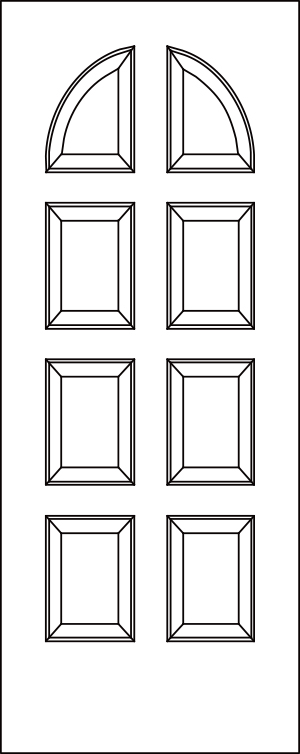

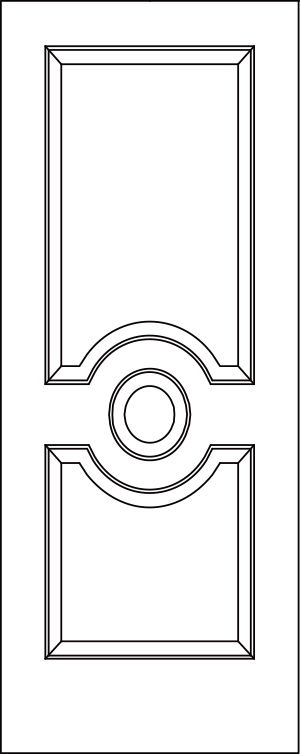

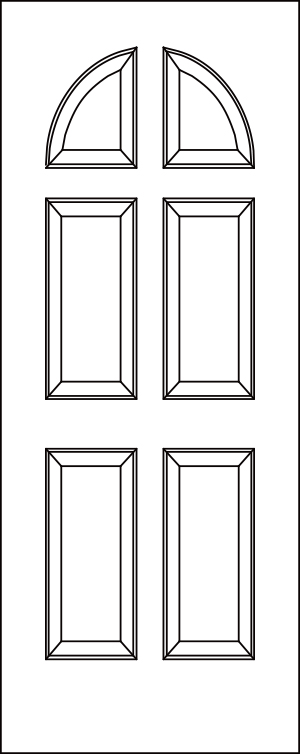

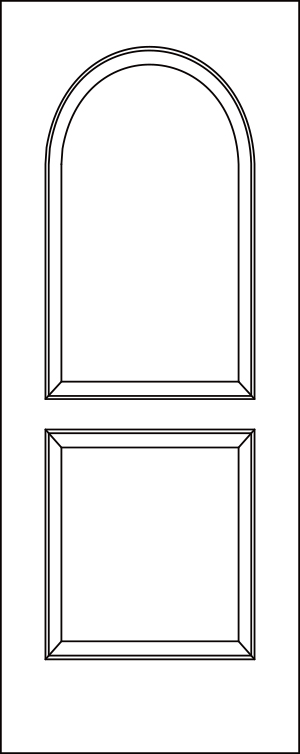

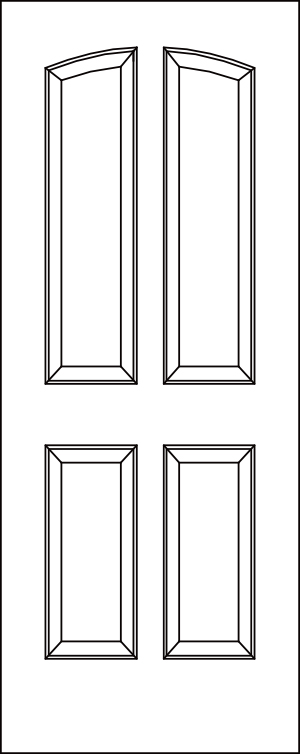

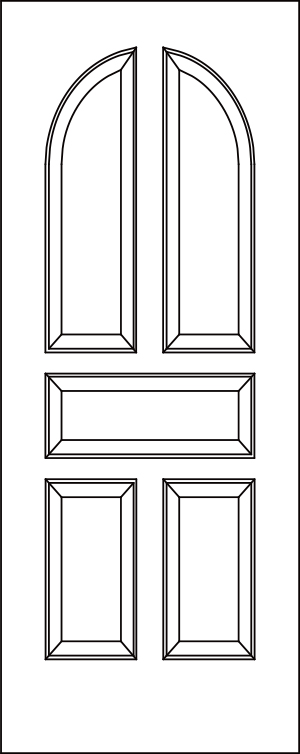

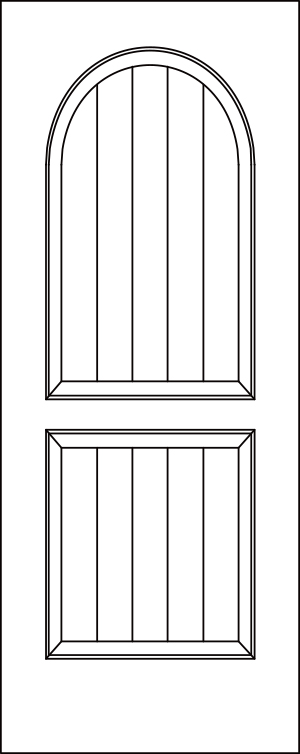

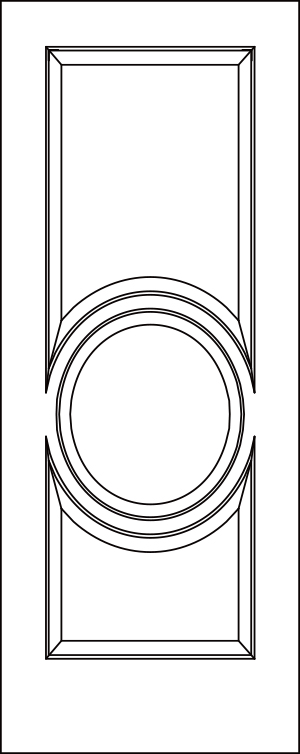

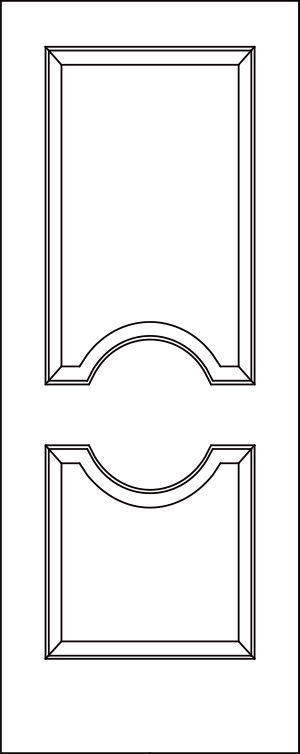

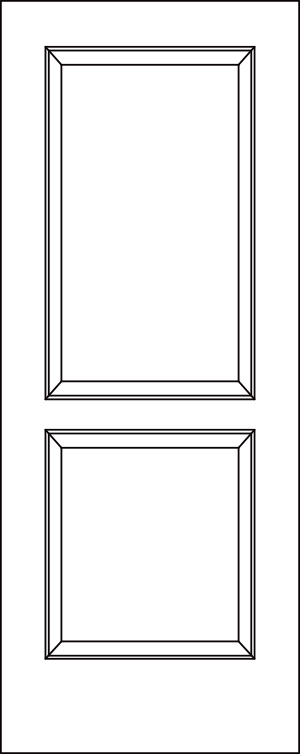

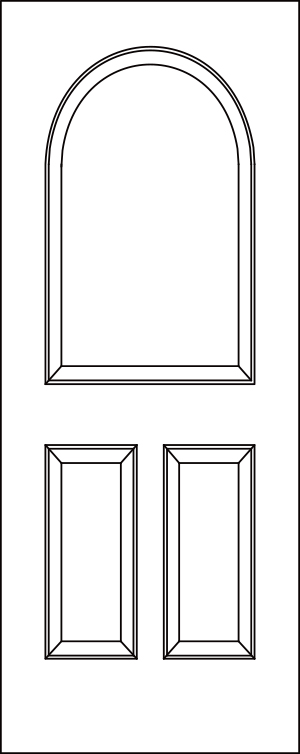

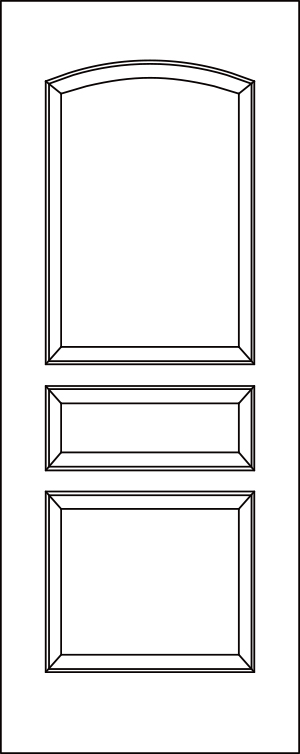

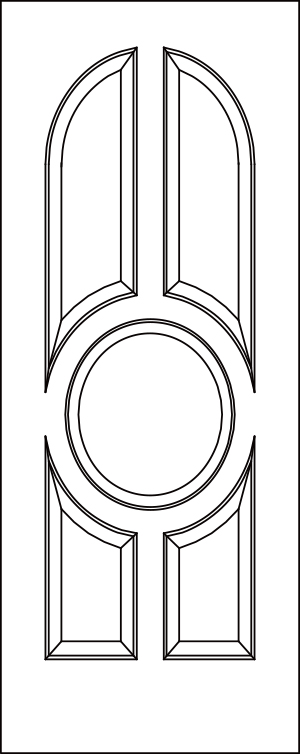

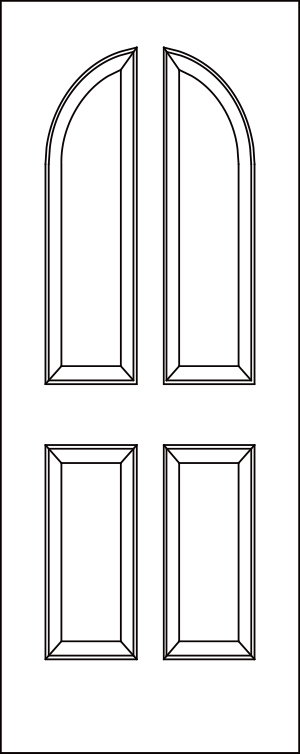

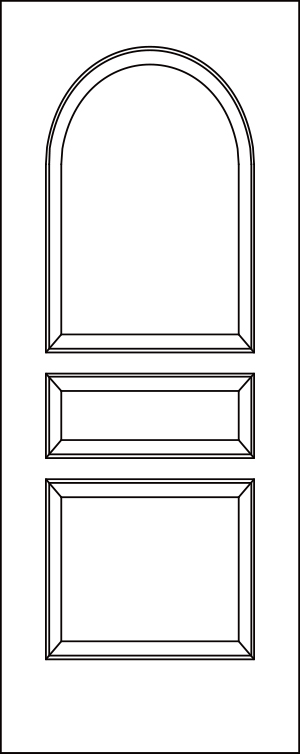

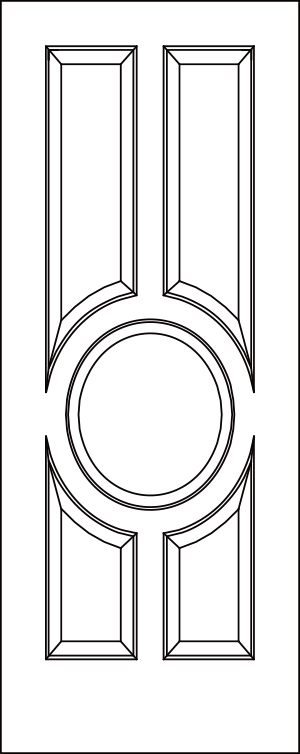

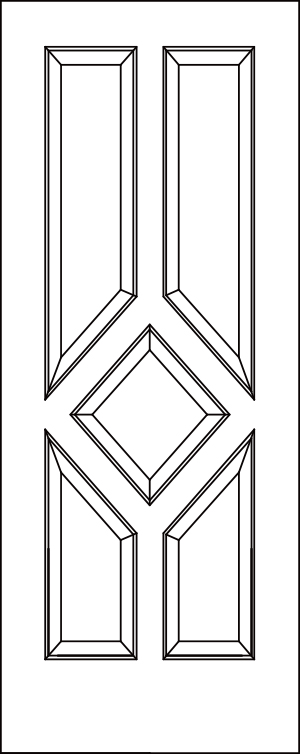

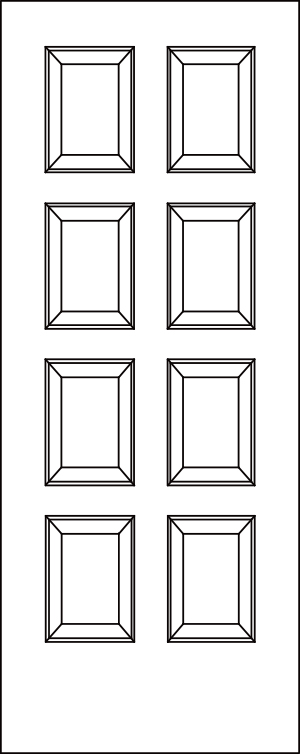

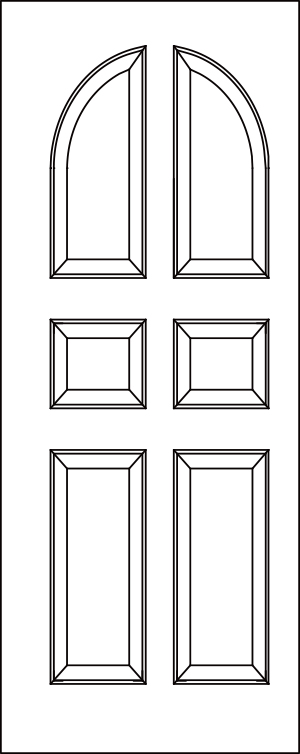

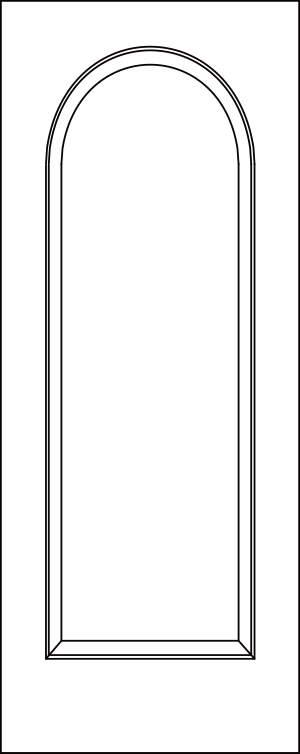

Standard Profiled Designs

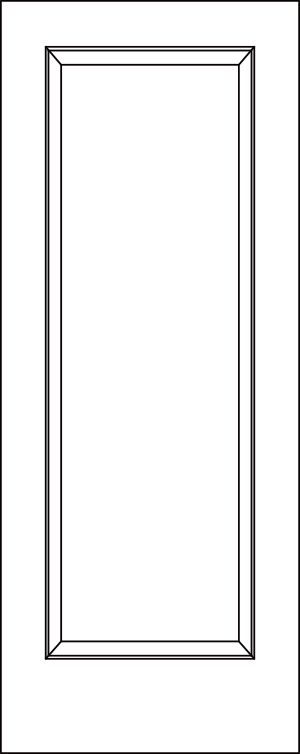

01
02
03
04
05
06
07
08
09

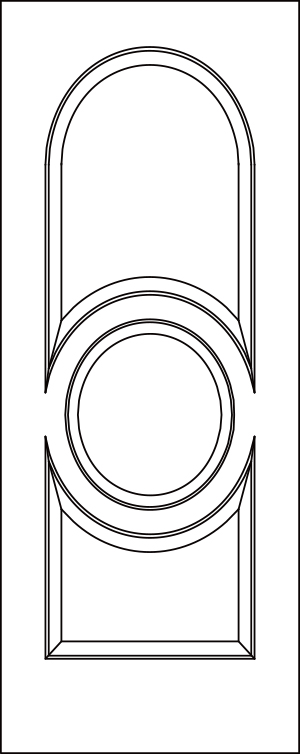

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

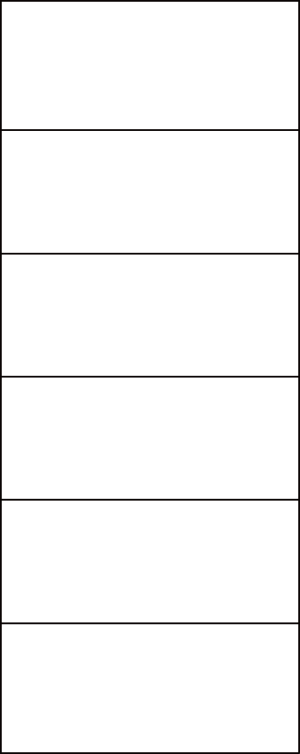

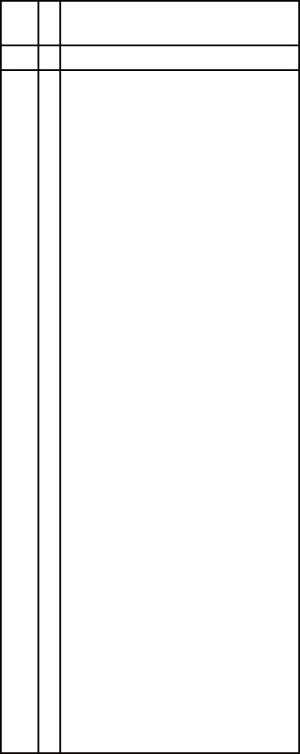

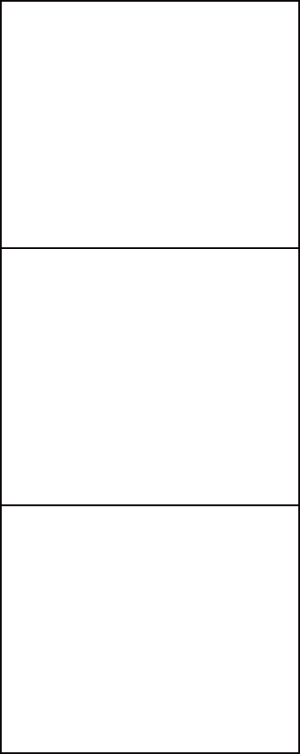

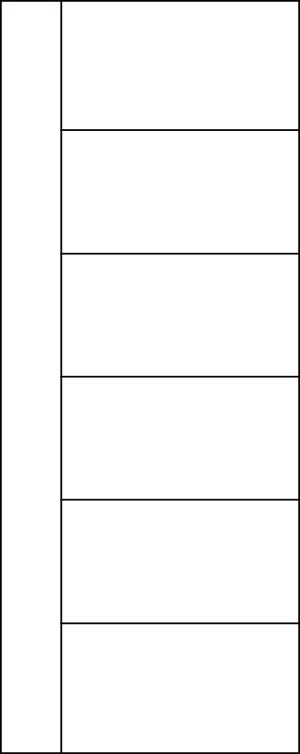

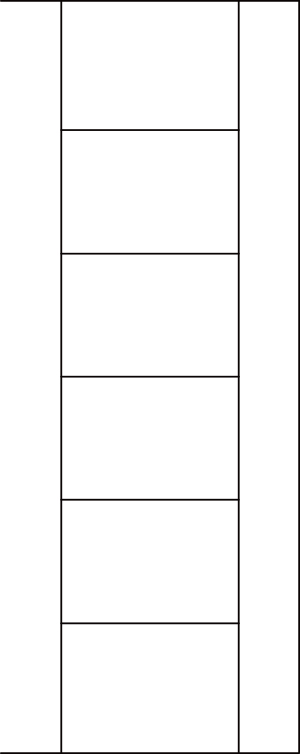

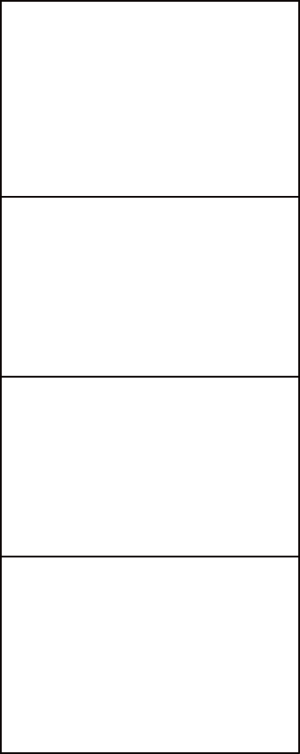

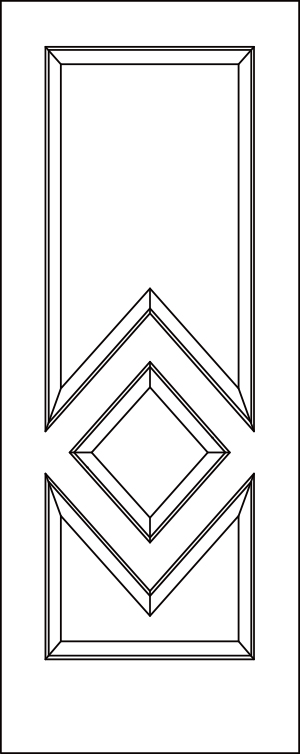

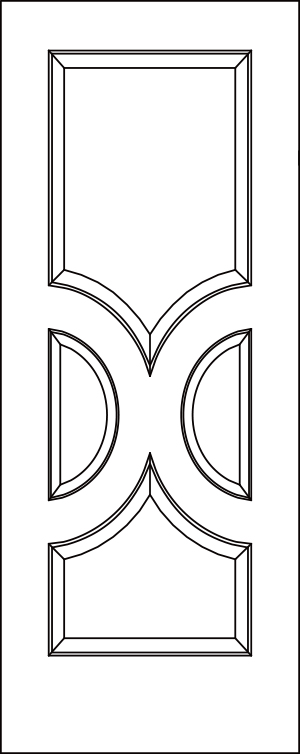

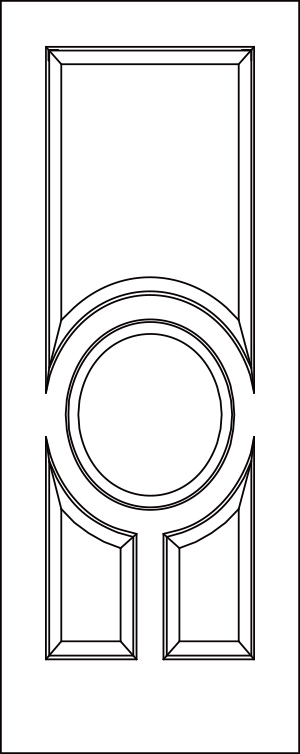

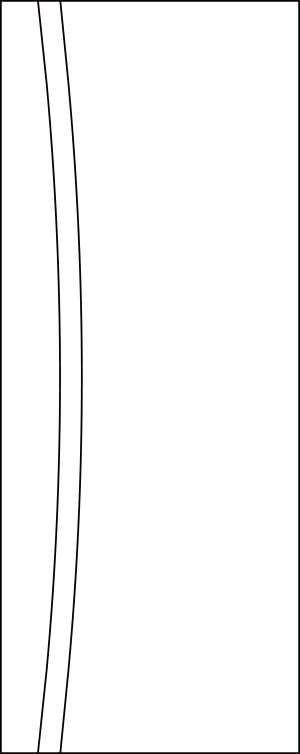

Modern Profiled Designs
01
02
03
04
05
06
07
