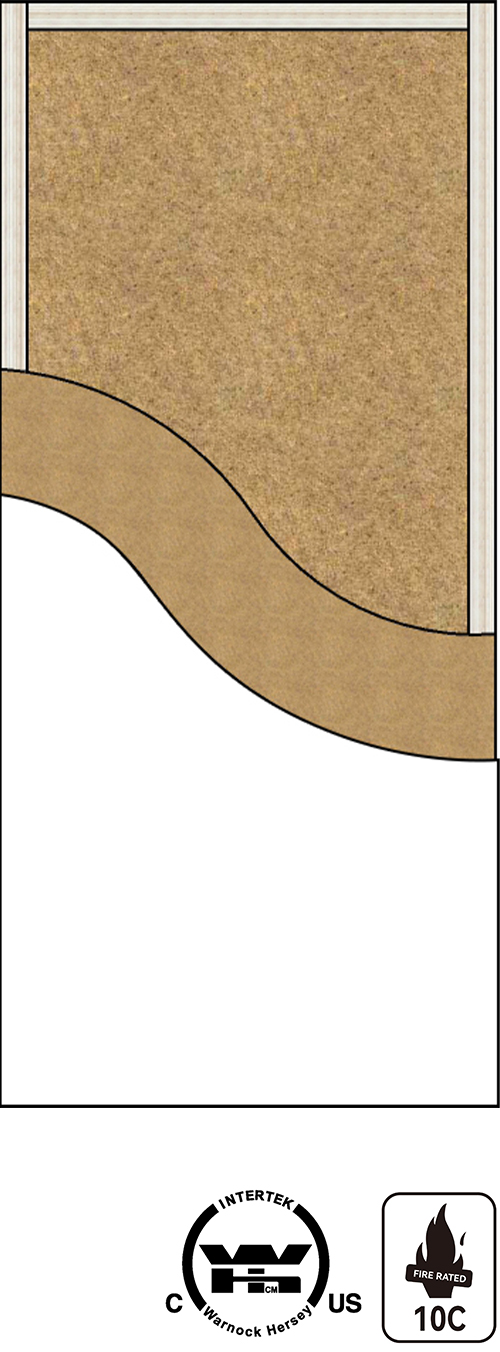

Structure: 3-Ply Construction, Bonded Core

Fire Rating: Non Fire Rated/20min/45min/60min/90min

Door Thickness: 1 3/8″ or 1 3/4″ for Non Fire Rated Doors, 1 3/4″ for Fire Rated Doors

Core Type: Honeycomb Paper/Particle Board/Mineral Core

Stile and Rail: Wood Stile and Rails for Non Fire Rated, 20min, 45min Fire Rated Doors. Mineral Stile and Rails for 60min, 90min Fire Rated Doors

Crossband: HDF

Finish: Primer Or Catalyzed Polyurethane Finish To Meet WDMA OP-6

Machining: Factory-machined Service Available

Vision Lite/Louver Lite: Allowed, 6″ Minimum Around All Edges

Bevel Option: Non-bevel, 1 Side Bevel or 2 Sides Bevel, 1/8″ at 2″ as Standard

Standards: Meets or Exceeds Industry Standards of ANSI/WDMA I.S. 1A, WI Section 12, AWI Section 1300

Testing Standards: USA NFPA 252 UL 10C, UL 10B, NFPA 252, and CAN/ULC S104, Positive Pressure, Category A Doors, No Additional Edge Sealing System Required
